Heavy Duty Wire Rope Clip

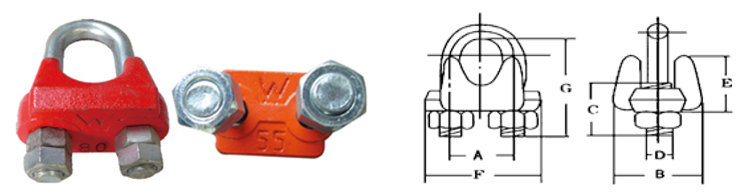

Heavy Duty Malleable Wire Rope Clip

Size
mm 		A B C D E F G 100pcs Weight
kg
10 M10 42 23 10 14 17 24 2.5
12 M12 55 26 12 17 18.5 30 4.5
15 M14 66 30 13 21 21 37 9
18 M14 77 37.5 14 27 21 47 18
20 M16 75 37 12 32 23 56 28
22 M18 84 42 14 38 26 70 47
25 M20 87 47 15 43 29 77 62
28 M22 110 53 33 50 30.5 85 85
32 M24 122 60 35 57 33.5 95 120
36 M24 135 66 35 61 33.5 108 157
40 M24 151 65 35 73 33.5 120 261
45 M27 165 75 43 85 40.5 137 363
50 M30 185 85 47 95 45 154 480
