Galv Wire Rope Clips

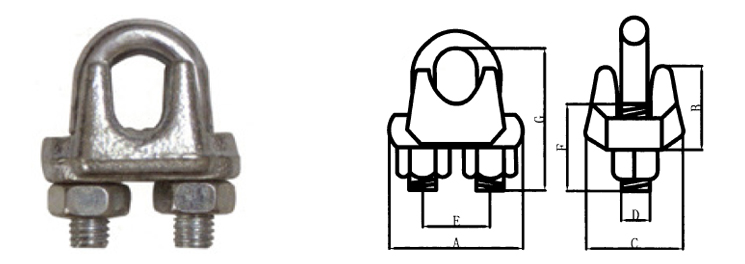

Galv Malleable Wire Rope Clips

Size (mm) Dimensions(mm) Weight 100pcs(lbs)
A B C D E F G
6 23 14 17 5 12 14 24 5.5
8 28 17 21 6 15 16 30 9.9
10 38 21 28 8 19 20 37 19.84
12 45 27 34 10 24 25 47 39.68
15 52 32 40 12 29 30 56 61.73
20 62 38 46.5 14 36 36 70 103.62
22 69 43 51.5 16 40 39 77 136.68
25 76 50 56 18 43 44 85 187.4
28 85 57 62 20 48 48 95 264.55
32 93 61 67 22 55 51 108 346.12
40 111 73 81 24 64 62 120 575.4
45 123 86 88 27 72 70 137 800
50 135 95 95 30 80 88 154 1058.2
