DIN1142 Wire Rope Clips

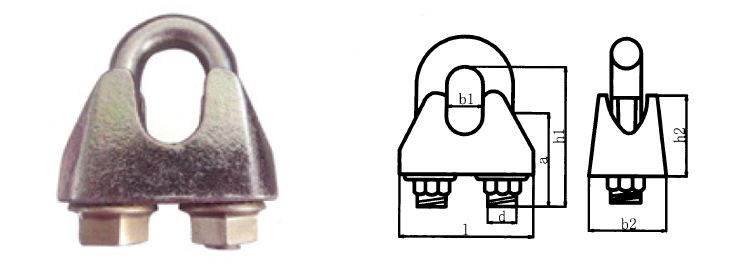

DIN1142 Malleable Wire Rope Clips

Size (mm) Dimensions(mm) Weight 100pcs(lbs)
a bl b2 d hl h2 l
5 13 7 13 5 25 13 25 5
6.5 17 8 16 6 32 14 30 9
8 20 10 20 8 41 18 39 18
10 24 12 20 8 46 21 40 20
13 30 15 28 12 64 29 55 61
16 35 18 32 14 76 35 64 95
19 36 22 32 14 83 40 68 108
22 40 24 34 16 96 44 74 150
26 50 26 38 20 111 51 84 258
30 55 34 41 20 127 59 95 309
34 60 38 45 22 141 67 105 470
40 65 44 49 24 159 77 117 591
