DIN741 Malleable Wire Rope Clips

DIN741 Malleable Wire Rope Clips

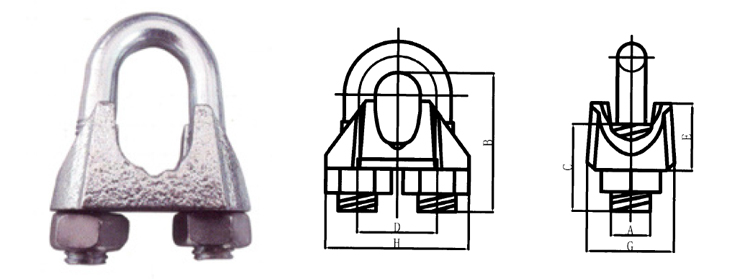

Size (mm) Dimensions(mm) Weight 100pcs(lbs)
A B C D E F G
3 21 10 10 4 9 12 16.6 3.09
5 23 10 11 5 11 13 19.65 3.3
6.5 26 11 12 5 13 15 23.65 4.63
8 30 15 14 6 16 19 28.85 9.04
10 34 17 18 8 19 22 35 15
11 36 18 19 8 20 22 37 15.87
13 40 21 23 10 24 30 46.24 28.7
14 44 22 23 10 25 30 48.24 29.76
16 50 26 26 12 29 33 52.5 46.3
19 54 30 29 12 32 38 64.5 61.7
22 61 34 33 14 37 44 72.5 88.2
26 65 37 35 14 41 45 82.5 97.0
30 74 43 37 16 48 50 95.6 145.5
34 80 50 42 16 52 55 105.6 187.4
40 88 55 45 16 58 60 125.6 229.3
