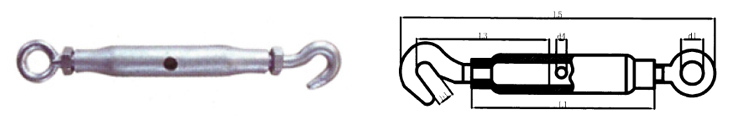

DIN1478 Turnbuckles

DIN1478 Turnbuckles

Size
(mm)
Body Length Adjustable Dimensions (mm)
d4 Hook Eye Total Length Screwedin Weight 100pcs
Ll(mm) (mm) L3 bl L3 dl L5 (lbs)
M6 110 90 6 85 8.5 80 9 172 25.6
M8 110 85 8 85 11 84 10 182 41.92
M10 125 95 8 112 13.5 105 14 213 68.4
M12 125 90 10 117 15.5 115 16 238 92.67
M16 170 120 10 138 19 165 22 320 196.38
M20 200 140 12 170 20.5 167 24 367 348.63
M24 255 180 12 205 26 205 27 447 644.3
M30 255 160 16 225 33 255 31 512 948.8
M36 295 180 16 255 44 276 43 568 1334.95
M42 330 200 20 340 48 260 49 683 2559.57
M48 355 210 20 360 58 300 58 755 3530.45
