DIN 1480 Turnbuckles

DIN 1480 Turnbuckles

Size
(mm)

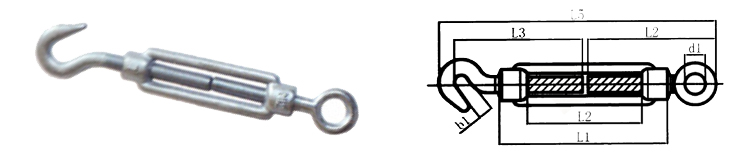

Dimensions(mm) Weight 100pcs (lbs)
L1 L2 L3 bl L4 dl L5
M6 110 80 85 8.5 80 9 172 21.0
M8 110 75 85 11 84 10 182 36.4
M10 125 85 112 13.5 105 14 213 64.0
M12 125 80 117 15.5 115 16 238 94.9
M14 140 90 122 18.5 122 18 263 136.8
M16 170 110 138 19 165 22 320 203.0
M20 200 130 170 20.5 167 24 367 359.7
M22 220 145 185 26 167 27 398 485,4
M24 255 170 205 26 205 27 447 662.0
M30 255 160 225 33 255 31 512 1015.0
M36 295 180 255 44 276 43 568 1694.6
M42 330 200 340 48 260 49 683 2846.4
M48 355 195 360 58 300 58 755 4633.7
