European Large Shackle

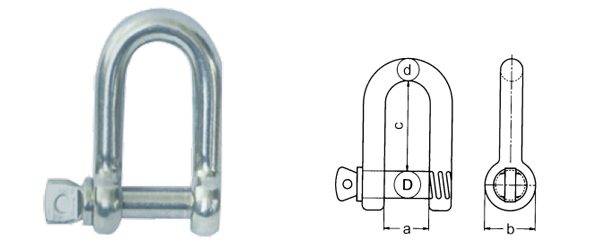

European Type Large Dee Shackle

SIZE SWL
(kg) 		D
(mm) 		d
(mm) 		a
(mm) 		c
(mm) 		b
(mm) 		Weight (kg)
Per 100pcs
5 80 5 5 10 19 11 1.85
6 100 6 6 13 25 11 3.3
8 200 8 8 16 32 18 6.8
10 320 10 10 19 38 20 12.6
12 520 12 12 25 51 26 23
16 800 16 16 32 64 33 48.5
20 1100 20 20 38 76 40 78
22 1500 22 22 44 89 50 126
25 2100 25 25 51 100 57 194
28 3000 28 28 57 115 68 291
32 3500 32 32 64 127 73 417
38 5000 38 38 76 152 85 655
45 7000 45 45 90 180 96 1213
50 8000 50 50 102 200 108 1698

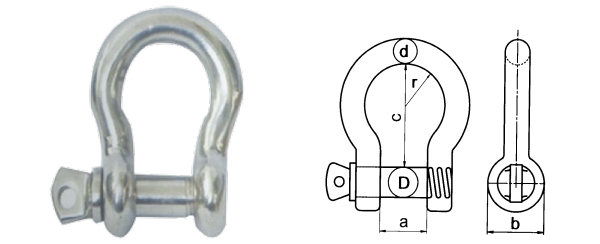

European Type Large Bow Shackle

SIZE SWL
(kg) 		D
(mm) 		d
(mm) 		a
(mm) 		c
(mm) 		r
(mm) 		b
(mm) 		Weight (kg)
Per 100pcs
5 80 5 5 10 19 8 11 1.9
6 100 6 6 13 25 10 14 3.4
8 200 8 8 16 32 12 18 7
10 320 10 10 19 38 16 20 13
12 520 12 12 25 51 19 26 26
16 800 16 16 32 64 28 33 50
20 1100 20 20 38 76 33 40 80
22 1500 22 22 44 89 37 50 130
25 2100 25 23 51 100 40 57 200
28 3000 28 28 57 115 47 68 310
32 3500 32 32 64 127 52 73 430
38 5000 38 38 76 152 63 85 700
45 7000 45 45 90 180 75 96 1250
50 8000 50 50 102 200 78 108 1750

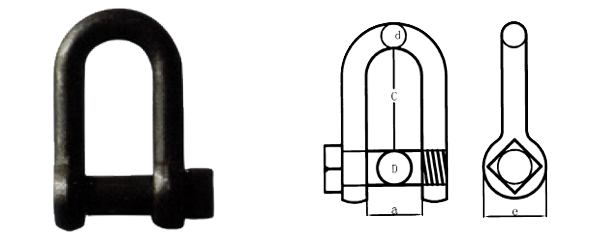

Trawling Shackles with Square Head Screw Pin


WLL(t) Dimensions(mm) Weight (lbs)
D d a c e
0.2 8 8 16 32 18 15.4
0.3 10 10 20 38 20 29.6
0.5 12 12 25 51 26 55.2
0.8 16 16 32 63 33 117
1.1 20 20 38 76 40 203
1.5 22 22 45 88 50 309
2 25 25 51 102 57 474.4
2.6 28 28 57 114 68 662
3.8 32 32 63 127 73 1004
4.5 38 38 76 152 85 1677
