U.S. Chain Shackles

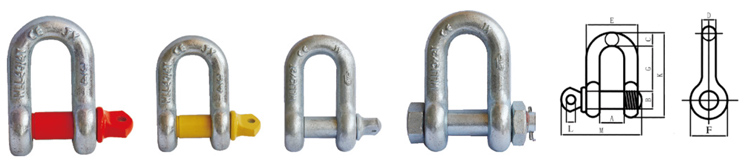

U.S. Type Chain Shackles

Nominal Size (in.) WLL
(t) 		Weight Each (kg) Dimensions(mm) Tolerance +/-
A B C D E F G k L M G A
1/4 0.5 0.05 11.9 7.85 6. 35 6.35 24.6 15.5 22.4 40.4 4 85 35.1 1.50 1.50
5/16 0. 75 0.08 13.5 9.65 7.85 7.85 29 5 19.1 26.2 48.5 5.60 42.2 1.50 1.50
3/8 1 0 13 16 8 11.2 9 65 9 65 35.8 23.1 31 8 58.5 6 35 51 5 3.30 1.50
7/16 1.5 0.20 19.1 12. 7 11.2 11.2 41.4 26.9 36.6 67.5 7 85 60.5 3.30 1.50
1/2 2 0.27 20.6 16.0 12.7 12.7 46.0 30.2 41 4 77.0 9.65 68 5 3.30 1.50
5/8 3 25 0 57 26 9 19.1 15.7 16 0 58.5 38.1 51 0 95.5 11.2 85 0 3.30 1.50
3/4 4. 75 1.20 31.8 22.4 20.6 19. 1 70.0 46.0 60.5 115 12.7 101 6.35 1.50
7/8 6.5 1.43 36.6 25.4 24 6 22 4 81.0 53.0 71.5 135 12.7 114 6.35 1.50
1 8.5 2.15 42.9 28.7 25.4 25.4 93.5 60.5 81.0 151 14.2 129 6 35 1.50
1-1/8 9.5 3.06 46.0 31.8 31.8 28.7 103 68.5 91.0 172 16.0 142 6 35 1.50
1-1/4 12 4. 11 51.5 35.1 35.1 31.8 115 76.0 100 191 17.5 156 6.35 3.30
1-3/8 13.5 5.28 57.0 38.1 38.1 35.1 127 84.0 111 210 19.1 174 6 35 3.30
1-1/2 17 7.23 60.5 41.4 41.1 38. 1 137 92.0 122 230 20.6 187 6.35 3.30
1-3/4 25 12 1 73.0 51.0 54.0 44 5 162 106 146 279 25.4 231 6.35 3.30
2 35 19 2 82 5 57.0 60.0 51.0 184 122 172 312 31.0 263 6.35 3.30
2-1/2 55 32.5 105 70.0 66.5 66.5 238 145 203 377 35.1 330 6.35 6.35
3 85 66 127 83 330 76 200 165 365 540 41 419 6.35 6.35
3-1/2 120 108 133 96 372 92 229 203 419 600 46 482 6.35 6.35
4 150 150 140 108 368 104 254 229 468 620 50 502 6.35 6.35
