Load Limited Switch

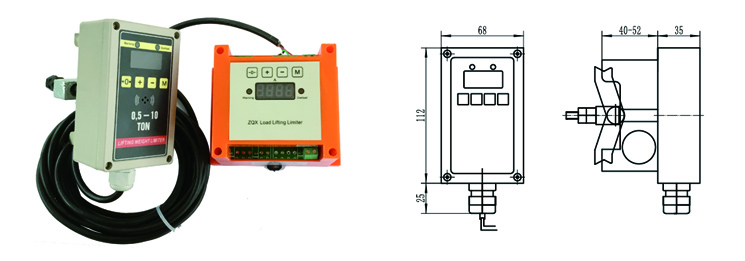

BQX Clamp Load Limited Switch Technical Feature:
Display Precision :  ≤10%F.S,
Function:  90% Pre Warning,
105% Warning and Closed the Lifting up
110% Closed Hositing Immediately
Temperature: -20℃ ～ + 60℃ / 90RH
IP Class: Sensor IP65, Instrument IP42
Contact capacity: AC250V, 10A
Power supply: AC380V ± 10%, 50Hz

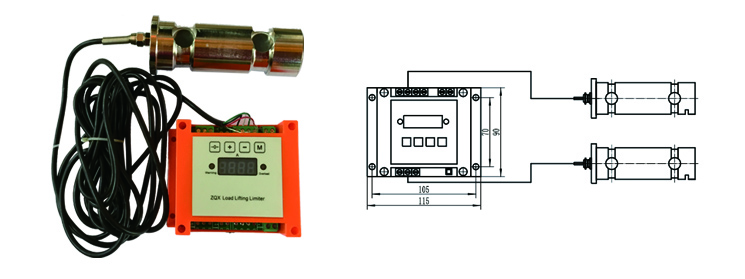

Pin Type Load Limited SwitchTechnical Feature
Display Precision :  ≤5%F.S,
Function:    90% Pre Warning,
105% Warning and Closed the Lifting up
110% Closed Hositing Immediately
Temperature: -20℃ ～ + 60℃ / 90RH
IP Class: Sensor IP65, Instrument IP42
Contact capacity: AC250V, 10A
Power supply: AC48V ± 10%, 50Hz
