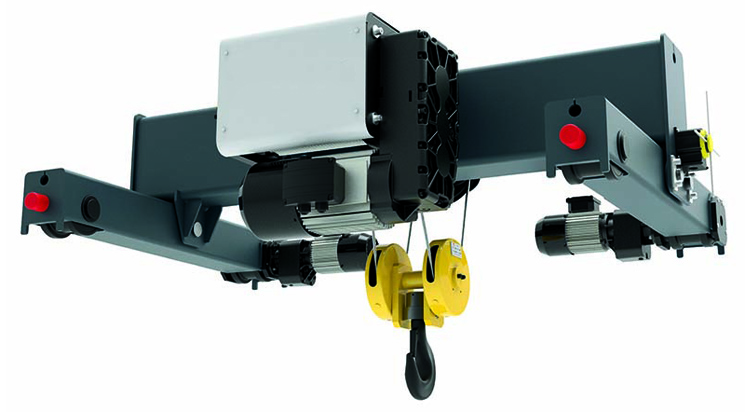

LRT Low Headroom Hoist for Double Girder Crane
Low Headroom Hoist for Double Girder Crane
| LRT series Low Headroom Doule Girder Hoist Specification | |||||||||
|
Capacity (t) |
Work Duty |
Lifting
Speed (m/min) |
Lifting
Height (m) |
Falls |
Travelling
Speed (m/min) |

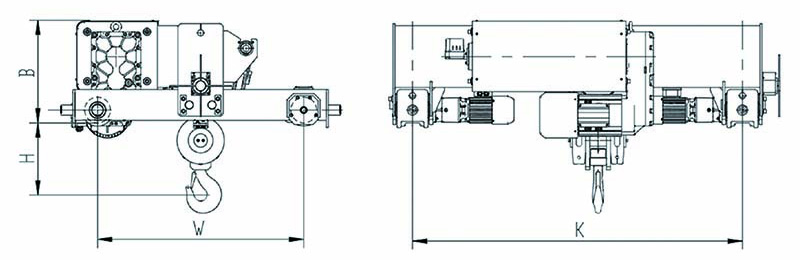

Height
of Trolley B(mm) |
Hook
upper limit H(mm) |
Trolley
Wheel Gauge W(mm) |
Trolley
Gauge K(mm) |
| 5 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2-20 | 500 | 330 | 1000 |
1600 2200 |
| 10 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2-20 | 605 | 520 | 1000 | |
| 16 | M5 | 3.3/0.53 | ≤ 16 | 6/1 | 2-20 | 700 | 860 | 1300 | |
| 16 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2-20 | 670 | 800 | 1300 |
2000 2500 3000 |
| 20 | M5 | 5/0.8 | ≤ 24 | 4/1 | 2-20 | 670 | 800 | 1300 | |
| 32 | M5 | 3.3/0.5 | ≤ 16 | 6/1 | 2-20 | 750 | 975 | 1300 | |
| 32 | M5 | 5/0.8 | ≤ 24 | 8/2 | 2-20 | 720 | 1075 | 1300 | |
| 40 | M5 | 5/0.8 | ≤ 24 | 8/2 | 2-20 | 720 | 1075 | 1300 | |
| 50 | M5 | 3.3/0.5 | ≤ 24 | 12/2 | 2-20 | 770 | 1100 | 1400 |
2500 3000 3250 3750 4250 |
| 63 | M5 | 2.4/0.4 | ≤ 21 | 16/2 | 2-20 | 770 | 1100 | 1400 | |
| 80 | M5 | 2.4/0.4 | ≤ 21 | 16/2 | 2-20 | 785 | 1150 | 1600 | |
