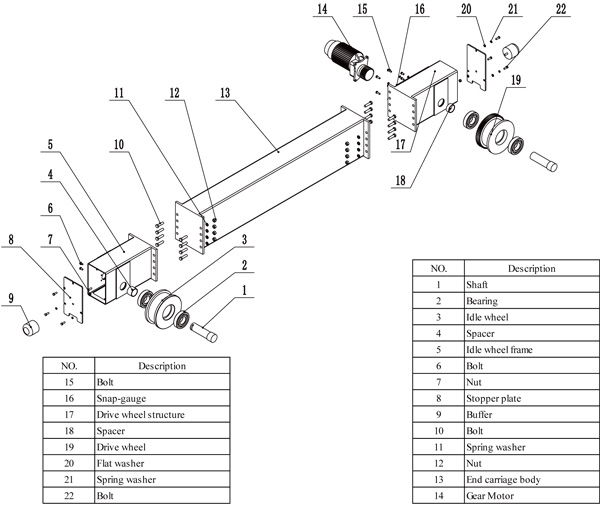

Open Geared End Carriage

Feature:

1.Reasonable price

2.Soft start gear motor

3.Light work duty.

4.Low speed. 0~25m/min

Advantage:

1.The wheel raw material is forced by 45#, 42crmn, QT-700 is available.

2.The structure is made by hollow profile.

3.All machinery for the connection surface and shaft is made in one time, one machine to make the two wheel is in the same line, and the motor wheel be 90° connection.

4.All motor and wheel is tested before delivery.


ΦD
(mm)
S1
(mm)
S2
(mm)
A
(mm)
ΦB
(mm)
W
(mm)
C
(mm)
K0
(mm)
Q
(mm)
P
(mm)
Weight
(mm)
120 1500 1746 50 60 150 215 60 10 92 69
2000 2246 84.5
2500 2746 100
3000 3246 115.5
3500 3746 131











140 1500 1766 50 60 150 220 65 10 97 70.5
2000 2266 86
2500 2766 101.5
3000 3266 117
3500 3766 132.5











160 1500 1806 80 80 200 275 65 15 115 95
2000 2306 115
2500 2806 135
3000 3306 155
3500 3806 175











200 1500 1836 80 80 200 330 75 20 135 110
2000 2336 133
2500 2836 156
3000 3336 179
3500 3836 202
