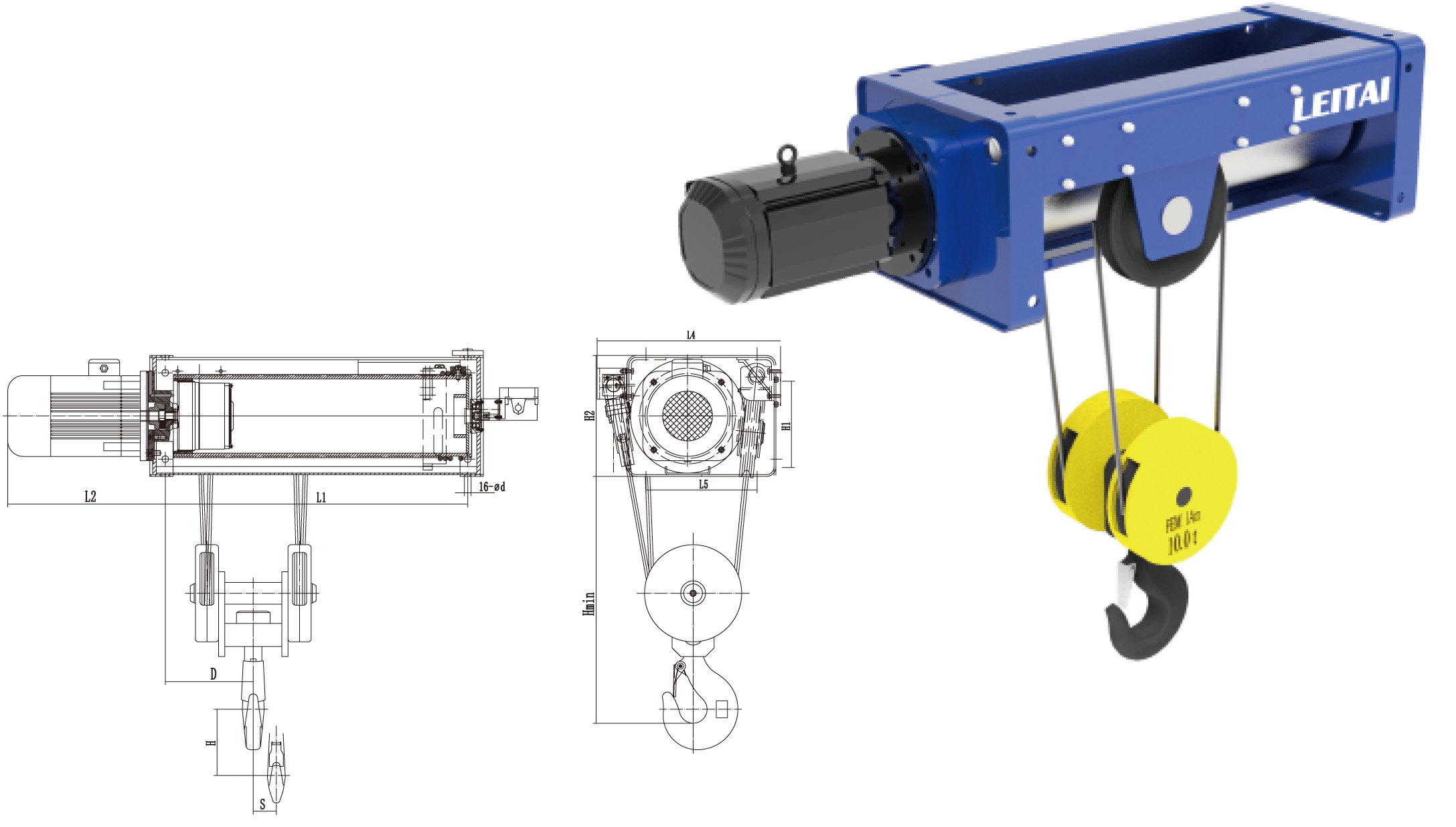

LHC-F Fxied Type Standard Room Wire Rope Hoist

Fixed type wire rope hoist for cargo elevator

Capacity
(t) 		Work
Duty 		Lifting Height
(m) 		Lifting Speed
(m/min) 		Rope reeling Lifting Motor Power
(kW) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		L4
(mm) 		L5
(mm) 		H1
(mm) 		H2
(mm) 		Hmin
(mm) 		d
(mm) 		D
(mm) 		S
(mm) 		N.W
(kg) 		IP
Class
2 M4 6 7.2
7.2/0.72 		2/1
3
3/0.4 		458 388 268 454 320 230 352 600 18 160 105 225 IP44
IP54
9 553 388 363 155 240
12 648 388 458 205 250
18 838 388 648 310 275
24 1028 388 838 410 300
30 1218 388 1028 510 325
3.2 M4 6 7.2
7.2/0.72 		2/1
4.5
4.5/0.4 		488 412 298 454 320 230 352 620 18 130 110 265 IP44
IP54
9 598 412 408 165 280
12 708 412 518 220 295
18 928 412 738 325 325
24 1148 412 958 435 355
30 1368 412 1178 540 385
5 M4 6 7.8
7.8/0.78 		2/1
7.5
7.5/0.8 		520 512 325 497 360 280 392 820 22 170 115 360 IP44
IP54
9 635 512 440 175 380
12 750 512 555 230 400
18 980 512 785 345 440
24 1210 512 1015 460 480
30 1440 512 1245 570 520
3.2 M4 6 3.6
3.6/0.36 		4/1
3
3/0.4 		648 388 458 551 320 230 352 600 18 250 55 260 IP44
IP54
9 838 388 648 85 285
12 1028 388 838 110 310
15 1218 388 1028 140 335
6.3 M4 6 3.6
3.6/0.36 		4/1
4.5
4.5/0.4 		708 412 518 551 320 230 352 620 18 255 55 305 IP44
IP54
9 928 412 738 85 335
12 1148 412 958 110 365
15 1368 412 1178 140 395
10.0 M4 6 3.9
3.9/0.39 		4/1
7.5
7.5/0.8 		750 512 555 594 360 280 392 800 22 285 60 410 IP44
IP54
9 980 512 785 90 450
12 1210 512 1015 120 490
15 1440 512 1245 150 530
